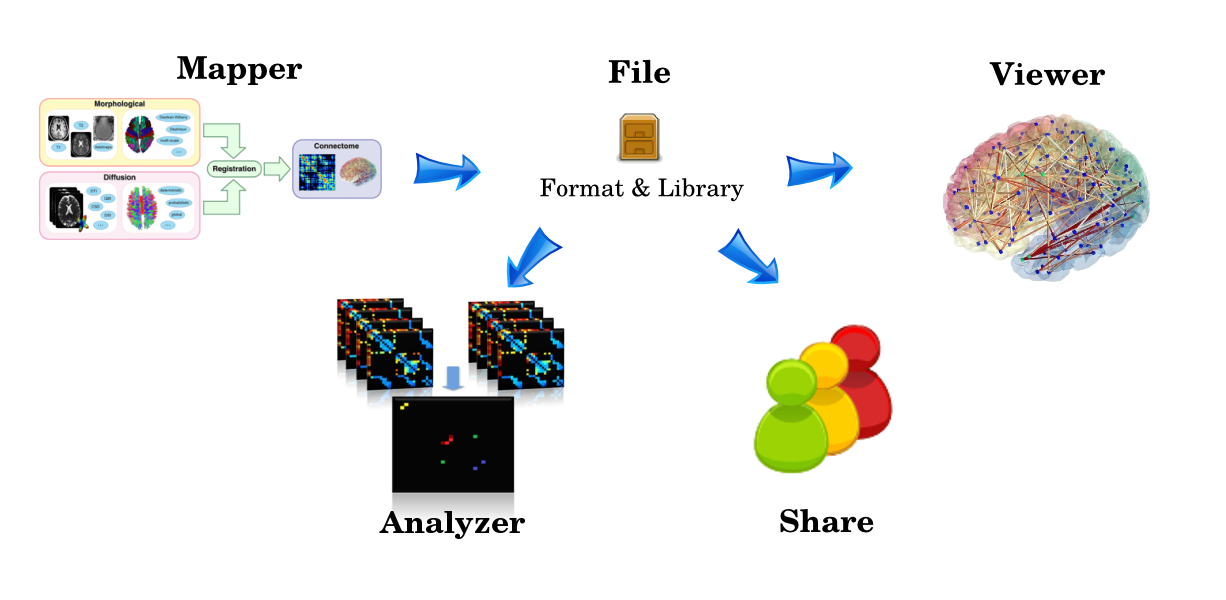

# Network Based Statistics for Group Comparison¶

## What is NBS?¶

The Network Based Statistics (NBS) is a nonparametric statistical test used to isolate the components of an N x N undirected connectivity matrix that differ significantly between two distinct populations. Each element of the connectivity matrix stores a connectivity value and each member of the two populations possesses a distinct connectivity matrix. A component of a connectivity matrix is defined as a set of interconnected edges.

The NBS is essentially a procedure to control the family-wise error rate, in the weak sense, when the null hypothesis is tested independently at each of the N(N-1)/2 edges comprising the connectivity matrix. The NBS can provide greater statistical power than conventional procedures for controlling the family-wise error rate, such as the false discovery rate, if the set of edges at which the null hypothesis is rejected constitues a large component or components.

The NBS comprises fours steps:

1. Perfrom a two-sample T-test at each edge indepedently to test the hypothesis that the value of connectivity between the two populations come from distributions with equal means.
2. Threshold the T-statistic available at each edge to form a set of suprathreshold edges.
3. Identify any components in the adjacency matrix defined by the set of suprathreshold edges. These are referred to as observed components. Compute the size of each observed component identified; that is, the number of edges it comprises.
4. Repeat K times steps 1-3, each time randomly permuting members of the two populations and storing the size of the largest component identified for each permuation. This yields an empirical estimate of the null distribution of maximal component size. A corrected p-value for each observed component is then calculated using this null distribution.

[1] Zalesky A, Fornito A, Bullmore ET (2010) Network-based statistic: Identifying differences in brain networks. NeuroImage. 10.1016/j.neuroimage.2010.06.041

Original code written by Andrew Zalesky, rewritten for Python by Stephan Gerhard.

## How to prepare the data?¶

The data preparation steps is explained using Matlab matrices or NumPy arrays. In a future version of ConnectomeViewer, it will be easier to directly group network from a loaded connectome file.

We need two input matrices for the NBS algorithm. These have dimension N x N x K, where N is the number of nodes in the network, and K is the number of subjects in the group respectively.

The full working script and example data is available in the examples/nbs/ folder in the source distribution.

Make the necessary imports:

```import numpy as np
import cviewer.libs.pyconto.algorithms.statistics.nbs as nbs
from pylab import imshow, show, title
```

If you are using nbs from within the ConnectomeViewer IPython Shell, you can directly use nbs without importing. It is exposed through loading of the NBS plugin on startup.

Steps to import the Matlab matrices (you might need to adapt the path):

```import scipy.io as io
X = Xmat['X']
Y = Ymat['Y']
n = X.shape[0]
```

The Matlab matrices are converted in Numpy arrays. Of course, you can start directly from here if you have your matrices already in Numpy arrays.

## Compute the NBS¶

We need to set a few parameters to invoke the NBS algorithm. Read the docstring and some more hints below:

```def compute_nbs(X, Y, THRESH, K = 1000, TAIL = 'both'):
""" Computes the network-based statistic (NBS) as described in [1].

Performs the NBS for populations X and Y for a
T-statistic threshold of THRESH. The third dimension of X and Y
references a particular member of the populations. The first two
dimensions reference the connectivity value of a particular edge
comprising the connectivity matrix. For example, X[i,j,k] stores the
connectivity value corresponding to the edge between i and j for the
kth memeber of the population. PVAL is a vector of corrected p-values
for each component identified. If at least one of the p-values is
less than 0.05, then the omnibus null hypothesis can be rejected at
5% significance. The null hypothesis is that the value of
connectivity at each edge comes from distributions of equal mean
between the two populations.

Parameters
----------
X, Y : ndarray

THRES : float

K : integer, default = 1000, optional.
Enables specification of the number of
permutations to be generated to estimate the empirical null
distribution of maximal component size.

TAIL : {'equal', 'left', 'right'}, optional
Enables specification of the type
of alternative hypothesis to test. If TAIL:
'equal' - alternative hypothesis is means are not equal (default)
'left'  - mean of population X < mean of population Y
'right' - mean of population X > mean of population Y

Returns
-------
PVAL : ndarray
p-values for each component

Returns an adjacency matrix identifying the edges comprising each component.
Edges corresponding to the first p-value stored in the vector PVAL are assigned
the value 1 in the adjacency matrix ADJ, edges corresponding to the second
p-value are assigned the value 2, etc.

NULL : ndarray
Returns a vector of K samples
from the the null distribution of maximal component size.
"""
```

For our purpose, the following parametes need to be set.

Run the NBS with the following parameter options: Set an appropriate threshold. It is difficult to provide a rule of thumb to guide the choice of this threshold. Trial-and-error is always an option with the number of permutations generated per trial set low.:

```THRESH=3
```

Generate 1000 permutations. Many more permutations are required in practice to yield a reliable estimate (e.g. 5000).:

```K=1000
```

Set TAIL to left, and thus test the alternative hypothesis that mean of population X < mean of population Y:

```TAIL='left'
```

Run the NBS:

## Visualize the results (components)¶

First, we use matplotlib to look at the connectivity matrix output that should contain the (enumerated) components found.

We can print the results for PVAL and NULL:

```print "pval", PVAL
print "null", NULL
```

And also show the connectivity matrix with:

```imshow(ADJ, interpolation='nearest')
title('Edges identified by the NBS')
show()
```

To show the results in 3D, we need to position the nodes of course. If you have a position Numpy array, perfect. It should have dimensions N x 3 of course, where N is the number of nodes. If you do not have such information, you can also apply a graph layouting algorithm. See the corresponding tutorial, The Art of Layouting Networks.

I assume the position Numpy array is P. Then, you can simply do:

```cfile.add_network_from_matrix_with_pos(name='Identified edges NBS', matrix = ADJ, pos = P, directed = False)
cfile.networks[0].active = True
cfile.networks[0].select_all()
```

Now, you can apply the edges threshold (Right-click on the network and select Edge Parameters) to look at the individual components separately.
